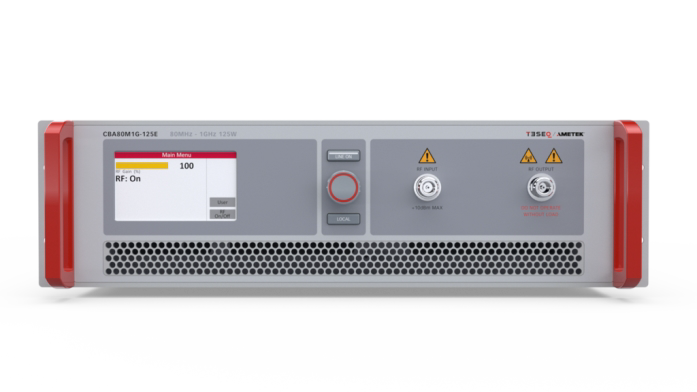

AMETEK CTS is pleased to announce the new TESEQ CBA80M1G E Series of solid-state power amplifiers.

Based on a market-leading AR design, these single-band, scalable class A amplifiers have unparalleled linear performance and offer excellent reliability under the most demanding operating conditions.

Combined with the CBA 4G and 6G or 8G series an RF System operational bandwidth over 80 MHz to 8 GHz is achieved.

The Class A bias results in minimal distortion, making this amplifier series ideal for multiple applications such as radiated immunity testing, including the complex modulation requirements of IEC 61000-4-41 and reverb chamber applications. The class A bias also affords, Low signal distortion, Wide Operational Bandwidth and Stable Performance over Temperature.

100% Mismatch Tolerant
可允許100%全反射(100% VSWR)

100% VSWR tolerance means the amplifier can handle ‘any load mismatch’, including an open or short circuit condition with no foldback without, incurring any damage.
This is critical in real-world RF systems where antennas may become disconnected, damaged, or exposed to environmental changes. 100% VSWR tolerance offers a high degree of reliability making this amplifier series ideal for applications with dynamic or unknow loads yielding low maintenance costs.

RF System Ready
具備多種控制介面方便系統整合(GPIB、USB、LAN、Fiber optic)

Reduces the time and effort needed for system integration allowing the user to get up and running quickly. This is achieved with flexible RF connector locations, standard form factors and remote interfacing like Ethernet, USB, IEEE-488, RS232 and fiber optic.

Long MTBF
長時間穩定運作無異常(Long MTBF)

The long MTBF offers higher reliability and continuous operation which is crucial for EMC labs where no downtime in testing is tolerated. Additional benefits include lower maintenance costs yielding a better return on investment.
