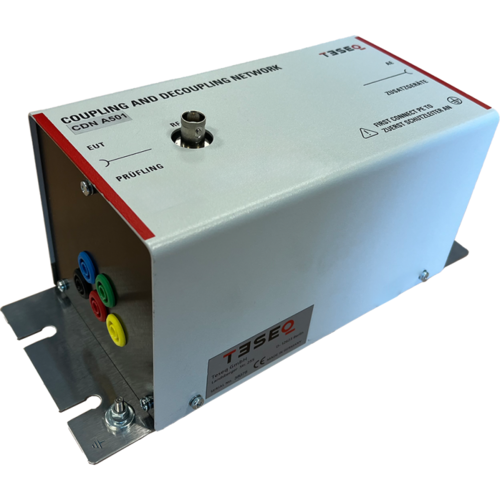

IEC / EN 61000-4-6 specifies the design and performance of a range of coupling /de-coupling networks (CDNs). Each CDN is specific to the type of cable and the intended signal carried on the cable. AMETEK CTS with its brand TESEQ offers an extensive range of CDNs which fully comply with the requirements of the standard and provide a simple and reliable method of injecting RF energy into the equipment under test (EUT). In this datasheet, CDN used with unscreened unbalanced for data communications with different line application starting from 150 kHz as required by IEC / EN 61000-4-6 is presented. The presented CDN AF series is used to Inject common mode disturbance signal into unscreened and unbalanced control lines with low currents and a maximum of four lines in the frequency range from 150 kHz to 230 MHz.

IEC/EN 61000-4-6 規範了一系列**耦合/去耦網路（CDN）**的設計與性能要求。每種 CDN 皆針對特定類型的電纜及其承載的信號設計。AMETEK CTS 旗下品牌 TESEQ 提供廣泛符合標準要求的 CDN，能夠簡單且可靠地將 RF 能量注入受測設備（EUT）。

本技術資料介紹適用於無屏蔽、非平衡數據通訊線路的 CDN，起始頻率為 150 kHz，符合 IEC/EN 61000-4-6 要求。所展示的 CDN AF 系列 用於將共模干擾信號注入 低電流無屏蔽非平衡控制線路，最多支援 四條線，頻率範圍為 150 kHz 至 230 MHz。

• Coupling networks designed for IEC/EN 61000-4-6
• Used for unscreened, unbalanced control lines
• Models with 4 mm safety banana sockets
• Models with frequency range 150 kHz to 230 MHz
• Models with better isolation to ground

• 符合 IEC/EN 61000-4-6 標準的耦合網路
• 適用於 無屏蔽、非平衡控制線路
• 提供 4 mm 安全香蕉插座 型號
• 頻率範圍涵蓋 150 kHz 至 230 MHz 的型號
• 具備 更佳對地隔離性能 的型號

• IEC / EN Basic Standards : IEC 61000-4-6
• CISPR Standards : CISPR 15 CISPR 24
• IEC / EN Generic Standards : EN 61000-6-1 EN 61000-6-2
• IEC / EN Product Standards : IEC 60533 IEC 60601-1-2 IEC 61326
