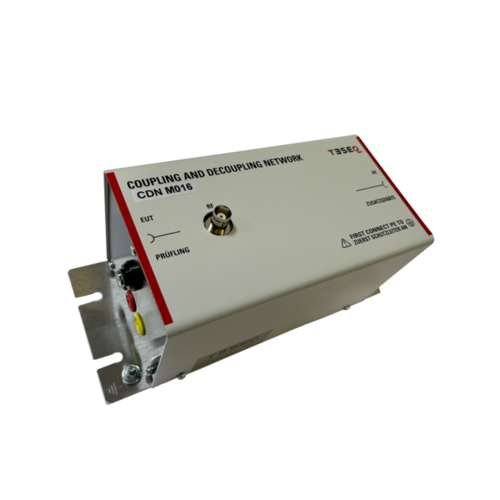

IEC/EN 61000-4-6 specifies the design and performance of a range of coupling/decoupling networks (CDNs). Each CDN is specific to the type of cable and the intended signal carried on the cable. The CDN M series is used to inject the RF disturbance on the main line (supply). Teseq offers an extensive range of CDN M4 series for four line applications and vast number of configuration. The presented CDN M4 series have a maximum current of 16 A and operating frequency starts from 150 kHz to 230 MHz. Teseq CDN M4 series comply fully with the requirements of the standard and provide a simple, reliable and safe method of injecting RF energy into the equipment under test (EUT).
IEC/EN 61000-4-6 規範了一系列耦合／去耦合網路（CDN）的設計與性能要求。每一種 CDN 都根據電纜的類型及其所傳輸的訊號進行專門設計。CDN M 系列專為在主電源線（供電線）上注入射頻干擾而設計。Teseq 提供多款 CDN M4 系列產品，適用於四線應用，並具備多種配置選擇。所介紹的 CDN M4 系列最大可支援 16 A 電流，操作頻率範圍自 150 kHz 至 230 MHz。Teseq 的 CDN M4 系列完全符合標準規範，提供一種簡單、可靠且安全的方式，將射頻能量注入受測設備（EUT）。
-
Coupling networks designed for IEC/EN 61000-4-6
-
CDN M series for mains applications
-
Models with frequency range from 150 kHz up to 230 MHz
-
For 4 Lines application
-
Models with 4 mm safety banana sockets or terminal block
-
Three different operating current with vast configuration choices
-
專為 IEC/EN 61000-4-6 標準設計的耦合網路
-
CDN M 系列，適用於電源線應用
-
頻率範圍 150 kHz 至 230 MHz 型號
-
適用於 4 線路應用
-
提供 4 mm 安全香蕉插座或端子排型號
-
三種不同工作電流規格，提供多樣化的配置選擇
-
IEC / EN Basic Standards : IEC 61000-4-6
-
CISPR Standards : CISPR 24
-
IEC / EN Generic Standards : EN 61000-6-1 EN 61000-6-2
-
IEC / EN Product Standards : IEC 60533 IEC 60601-1-2 IEC 61326
