Ergonomic design and advanced functionality.

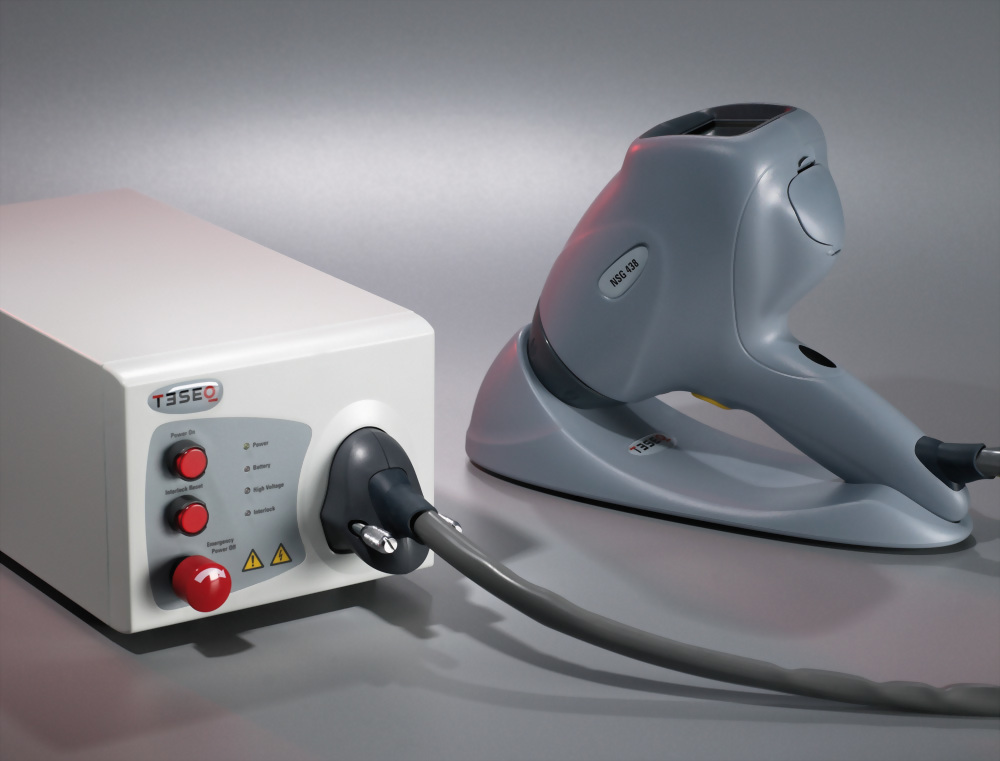

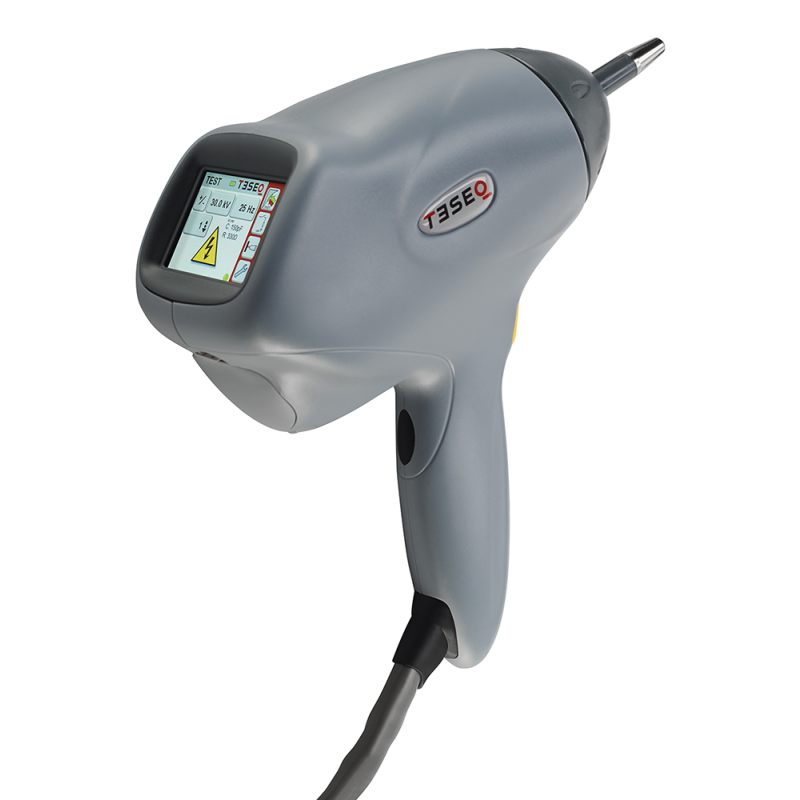

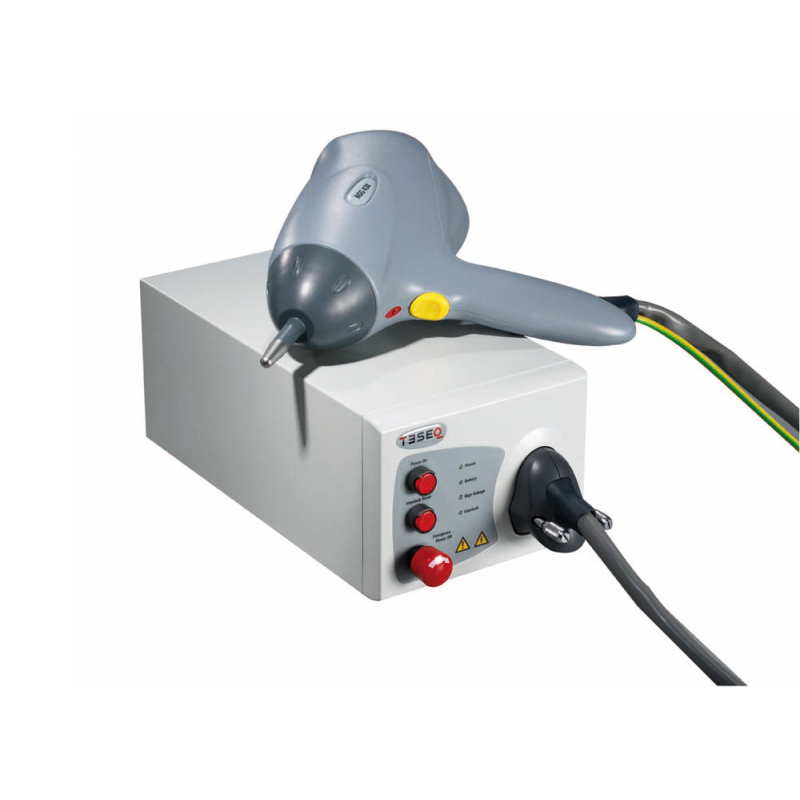

The NSG 438 ESD simulator is designed to
sit comfortably in the operator’s hand, with operating conditions constantly
displayed and accessible on a bright, clear color touch display.
NSG 438 comprehensively fulfills virtually
all international standard requirements.

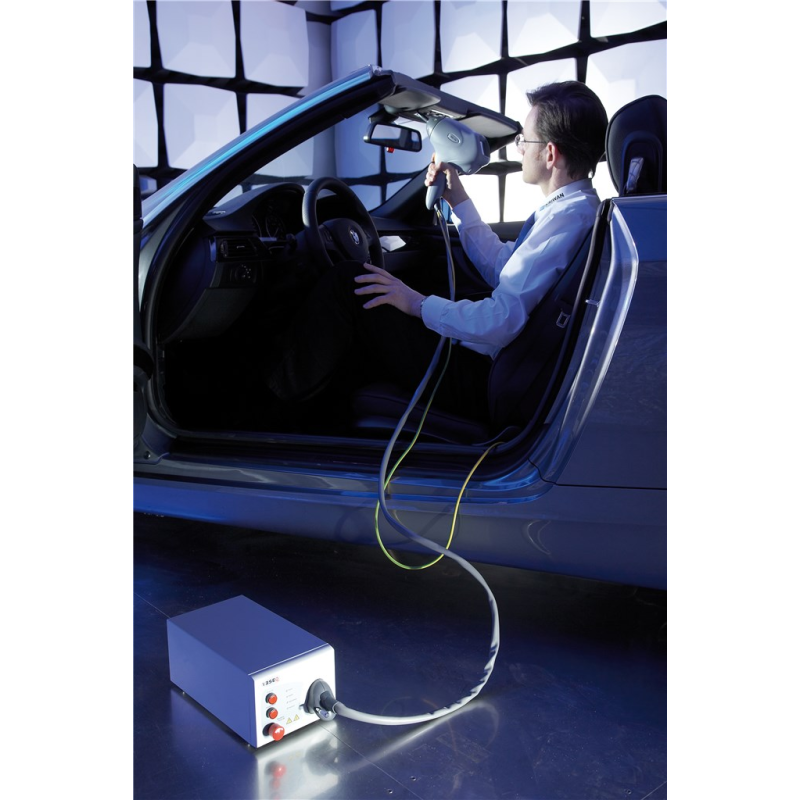

Based on over 60 optional discharge
networks, the NSG 438 can meet any of today’s automotive manufacturers’
standards.
The simulator is simple, convenient and
safe to use.
The whole range of parameter settings
including polarity selection, freely adjustable pulse repetition, counter
functions and discharge detection is available up to the maximum discharge
voltage.

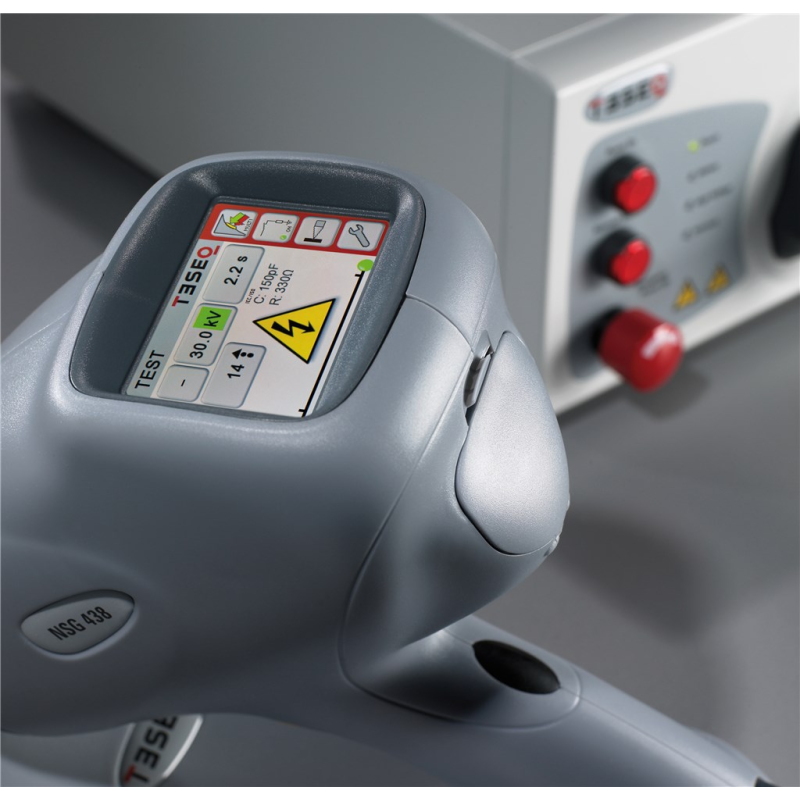

The color touch display and keypad for
parameter input shows the precise functional and test data with user-selectable
language for convenient and safe operation worldwide.
The simulator contains variable threshold
selection for accurate discharge detection.
This detection feature can be switched off
when testing EUT’s with non-conductive surfaces, such as plastic housings.
Pre-programmed settings for IEC 61000-4-2
and ISO 10605 ensure that the simulator is automatically set up correctly and
the appropriate discharge network is installed.
The actual RC value is displayed at all
times. Molded HV discharge networks in solid cases eliminate ionization and
leakage current effects.
Precisely tuned combinations of RC
components guarantee wave shape parameters to be within tolerances.
A unique activity log is included so that
the types and numbers of ESD simulations can be easily scrolled through to
check what has been tested and in what timeframe.
符合人體工學的設計和先進的功能。
NSG 438 ESD 模擬器設計得非常適合操作員的手持，操作條件始終在明亮清晰的彩色觸控顯示屏上顯示並可隨時訪問。
NSG 438 全面滿足幾乎所有國際標準要求。
基於超過 60 種可選的放電網路，NSG 438 能夠滿足當今汽車製造商的任何標準。
模擬器簡單、方便且安全使用。
整個參數設置範圍，包括極性選擇、可自由調整的脈衝重複、計數器功能和放電檢測，均可達到最大放電電壓。
彩色觸控顯示屏和參數輸入鍵盤顯示精確的功能和測試數據，並提供用戶可選擇的語言，以便在全球範圍內方便和安全地操作。
模擬器包含可變閾值選擇，以實現準確的放電檢測。當測試具有非導電表面的設備（如塑料外殼）時，此檢測功能可以關閉。
預設的IEC 61000-4-2和ISO 10605設置確保模擬器自動正確設置，並安裝適當的放電網絡。
實際的RC值始終顯示。固體外殼中的模壓高壓放電網路消除了電離和漏電流的影響，精確調整的RC元件組合保證波形參數在公差範圍內。
還包含一個獨特的活動日誌，以便輕鬆瀏覽ESD模擬的類型和數量，檢查已測試的內容及其時間範圍。
空氣和接觸放電至30 kV
Automotive Standards : ISO 10605
IEC / EN Basic Standards : IEC 61000-4-2
